HUXGO® HXA003 2G - Control panel of the Alarm System with WiFi and GSM | Control via Tuya Smart

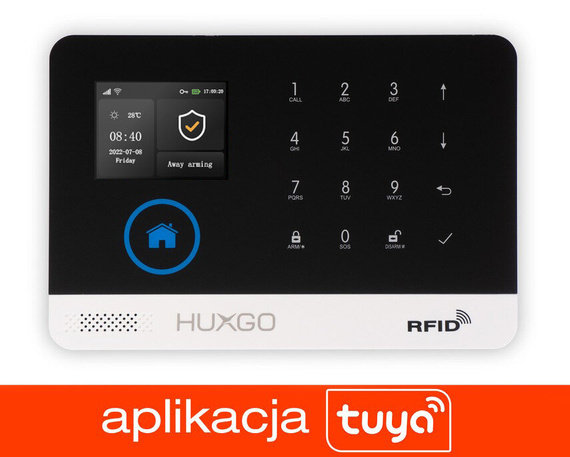

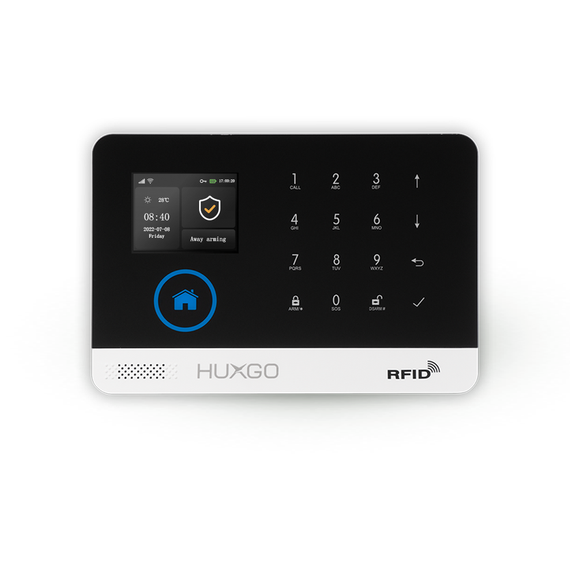

Reliable and modern - the HUXGO HXA003 alarm control panel

The HUXGO HXA003 2G is a wireless alarm control panel that integrates modern technological solutions to provide effective protection for your property. Thanks to the integration of GSM and WiFi modules, the device offers versatile communication and control options.

The control panel allows you to create a personalized alarm system, supporting up to 99 wireless sensors. You can customize the configuration to the specifics of the protected object and your own preferences.

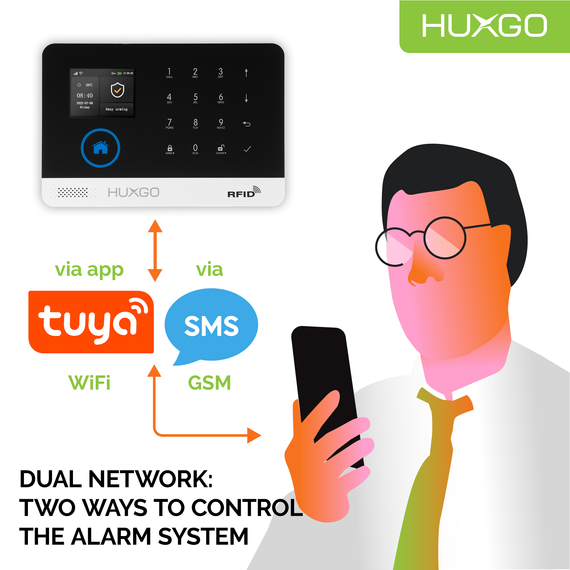

Thanks to two communication modules – GSM and WiFi – you have full control over the system. You can manage the control panel using phone calls, SMS messages, or the TUYA SMART mobile application. Whether you are at home or away, you have constant access to information and the ability to respond to potential threats.

The intuitive operation of the control panel is due to the touch keyboard and 2.4-inch color display.

The HUXGO HXA003 2G alarm system stands out with the following key features and advantages:

• Dual communication path: The device uses both GSM and WiFi networks, ensuring reliable connectivity.
• Global GSM compatibility: Works with GSM 850/900/1800/1900MHz transmitters, supporting operators across Europe.
• Continuous monitoring: Ability to monitor the system 24/7 from anywhere with GSM or WiFi coverage.
• Smart control: Remote management via Tuya Smart or Smart Life mobile applications, integrating various smart home devices.
• SMS control: Option to control via SMS messages (SIM card required).
• Power outage notifications: SMS notification of mains power loss.
• Various alarm notifications: Phone calls, SMS, and PUSH notifications upon alarm activation.
• Alarm number configuration: Ability to set 5 phone numbers to receive alarm SMS notifications.
• Automatic scheduling: Function to set automatic arming/disarming schedules.
• Simple arming/disarming: Quick operations using remote controls or RFID key fobs.
• Emergency alarm function: Instant alarm activation via a button on the control panel or remote (S.O.S).
• Entry/exit delay: Ability to set a delay (1-99 seconds) for easy exit from the premises.
• Flexible arming: Full or partial arming (activation of selected sensors).
• Three security zones: Internal, external, and 24-hour zones.
• Backup power: Built-in battery for mains power outages.
• Battery status monitoring: In-app notifications of low sensor battery levels.
• Anti-tamper protection: Automatic alarm activation upon attempted control panel removal.
• Telephone calls from the control panel: Option to make phone calls from the control panel.
• Password protection: Screen lock with a password.
• Interactive display: 2.4-inch color display with a touch panel.
• System expansion: Supports up to 99 wireless accessories (e.g., motion sensors, remotes), including up to 10 RFID key fobs.
• Aesthetic design: Stylish, elegant design and compact dimensions.
• Easy installation: Simple, self-installation without additional wiring.

Specifications:

• Power Supply: DC 5V (powered by USB Type-C standard interface)
• Operating current: <120mA
• Alarm current: <650mA
• Frequency: 433MHz
• WiFi Standard: 2.4GHz
• Coding format: Receive support 1527/2262
• GSM Module: 2G
• Battery: 3.7V 1000mAh
• Material: ABS
• Operating Temperature Range: -10°C to +55°C
• Humidity: ≤80% RH
